Leaf Area Meter
Portable Leaf Area Meter with image saving capability
Compact and portable leaf area meter suitable for the accurate, non-destructive measurement of leaf area and associated parameters. It allows the scanned image to be saved in memory for future review of data & measuring technique

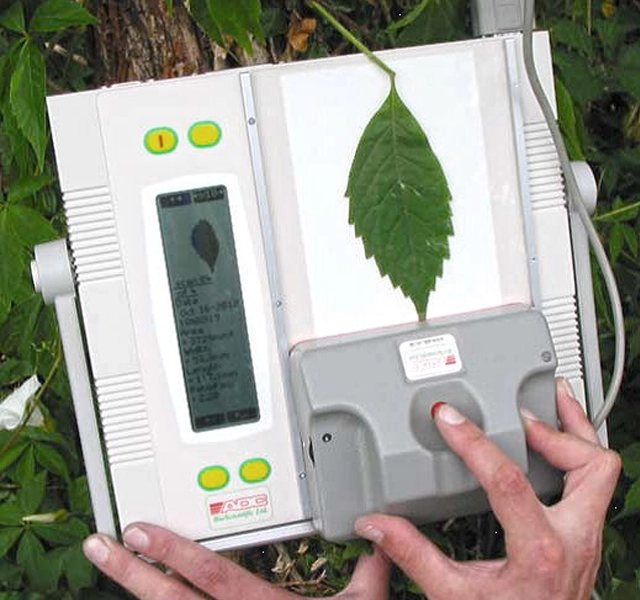

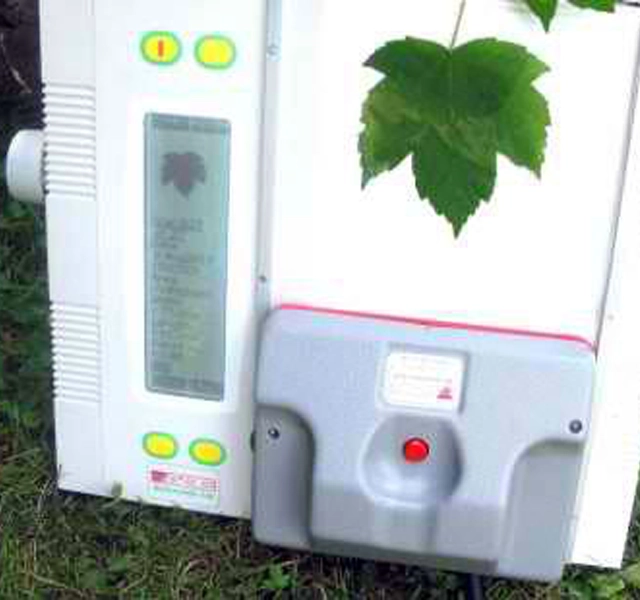

The AM350 portable leaf area meter is an update of the very popular AM300 design. It provides a stored image of the scanned leaf for later review and reliable science. Designed for field use, it is battery operated and allows fast, non-destructive, and high resolution measurement. It measures: leaf area, accumulated area, mean area, length, width, perimeter, ratio, and shape factor. Data and images may be transferred in comma delimited format by USB port.
Parameters measured:
Measured parameters:
Leaf area, maximum length, maximum width, perimeter, mean area, accumulated area, ratio and shape factor.
Units of measurement:
User selectable: mm or cm .
Scanner:
Contact image sensor array with integral LED lamp.
Scanning speed:
Up to 20 mm/sec.
Maximum measurement width:
103 mm.
Maximum measuring length:
2 m.
Precision / repeatability:
+/-1% Linear, +/- 2% Area, +/- 5% Perimeter.
Resolution:
0.065 mm2.
Memory:
256K bytes RAM. (Approx. 2,000 data sets).
Display:
64 x 240 pixel graphic LCD.
Battery:
Nickel metal hydride 1.2 Ah. Internal battery back up.
Computer interface:
Mini-B USB connection and RS-232.
Battery charger:
Built in fast charger; can use supplied mains adapter or 12V car battery. Indicators for charge status.
Scans between charges:
Typically 3,000 from fully charged battery.
Operating temperature range:
0 – 45oC.
Dimensions:
275 mm x 250 mm x 30 mm.
Weight:
1.8 kg.
